Features

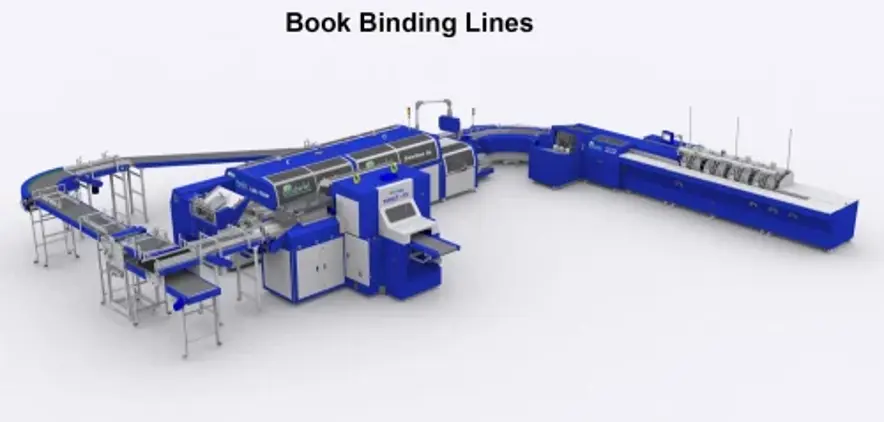

| FREEDOM BINDLINE |
| Smartest High Speed Perfect Binding Line |
| Bindwel series of perfect binding line with freedom of posssibilities |

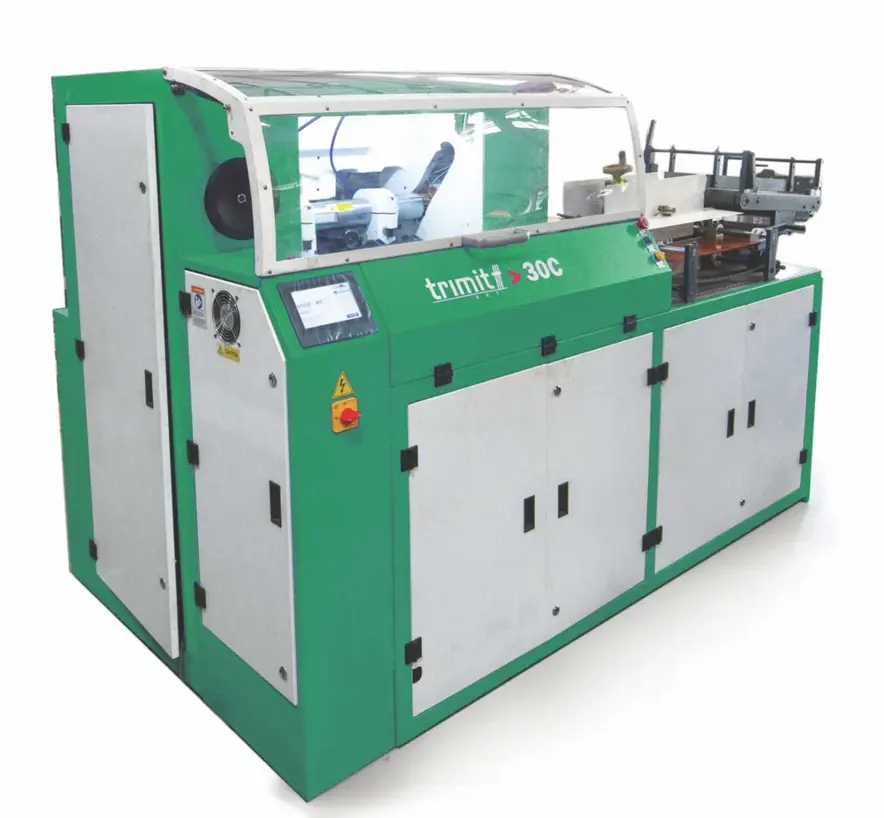

| Freedom 5000 with inline gathering and trimming • Signa gatherer (straight or 90 degree) • Inline trimmer (Trimit 30 C or Trimit 50 C) |
| Prices may vary based on the client's requirements. |
Technical Specifications
| Max Binding Thickness | 50 mm |
| Model Name/Number | Bindline 5000 |
| Voltage | 415 V |
| Minimum Book Size | 140 mm x 110 mm |
| Mechanical Speed | 5000 Cycles Per Hour |
| Maximum Book Size | 380 mm x 250 mm (420 mm x 300 mm - Direct Clamp Feeding) |
| Gathering Stations | 20 Stations |
| Air Requirement (Dry Air) | 75 CFM, 8 Bar (16 Station Configuration) |
| Maximum Cover Size | 420 mm x 650 mm |
