Komori - LSX-629 LED H-UV

Sheet Fed / Offset Komori LSX-629 LED H-UV
Sheet Fed / Offset Komori LSX-629 LED H-UV
Sheet Fed / Offset Komori LSX-629 LED H-UV
Sheet Fed / Offset Komori LSX-629 LED H-UV

Machine Specification

FeaturesValue
Number of colours6
Max sheet size23x29 inch | 58.4 x 74 cm

Machine Description

Komori LSX-629 LED H-UV Foil Embosing Debossing Die cutting (2008).
Max.Size: 74 x 58 cm (29 x 22 inch).
Colors: 6.
Impress.Count: 66 mio.
.
Extras: Autoplate - Digital Controls - Touch-screen Control - Coater - Autosize - Dryer - CIP.
.
Type / model LSX-629.
Year of production 01/2008.
The course of the machine 66 mln.
Printing specification.
Max. mechanical printing speed 16 000 sheets/h.
Technotrans.
tempering of ink rollers.
two independent water cooling systems.
APC, or automatic disc change.
automatic ink system for inkers agitators.
One UV interdeck and three UV lamps at the end.
UV Print Tak.
LED H-UV Print.
Printing stock.
Max. sheet size 610x750 mm.
Min. sheet size 297x420 mm.
Max. print format 585x740 mm.
Thickness 0,04-0,8 mm.
Plates & blankets.
Offset plates 660x760 mm.
Coating blanket 770x768 mm.
Varnish blanket 770x768 mm.
Configuration.
Printing units 6 1.
Printing units - varnish 1

ModelKomori-LSX-629 LED H-UV
ManufacturerKomori
Year2008
Machine AvailabilityImmediately
Machine ConditionIn Stock
PriceOn Request
LocationEurope Western

Special Features

  • Autoplate
  • Coating
  • Computer Controls/ Digital Controls
  • UV Dryer

About Komori - LSX-629 LED H-UV

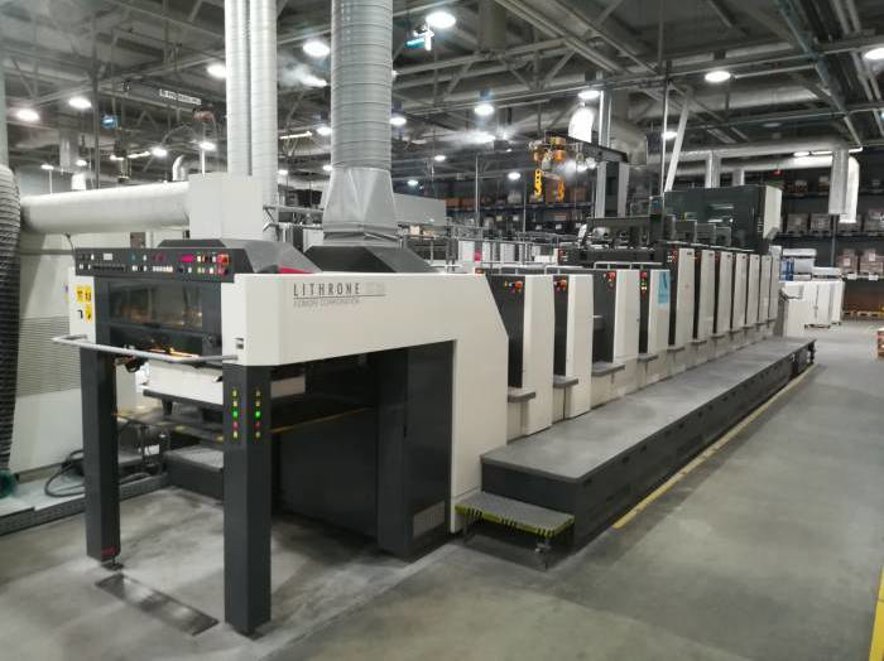

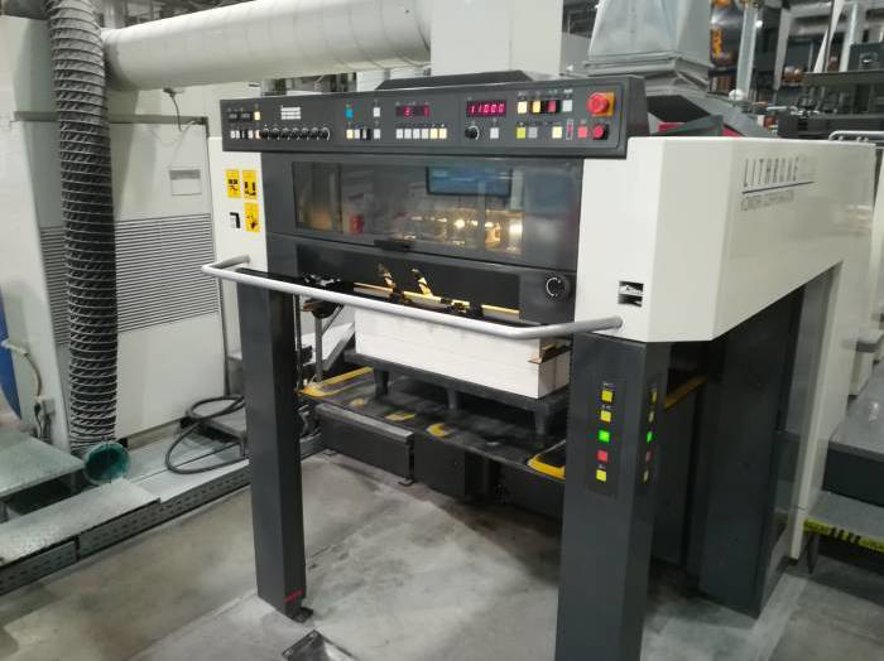

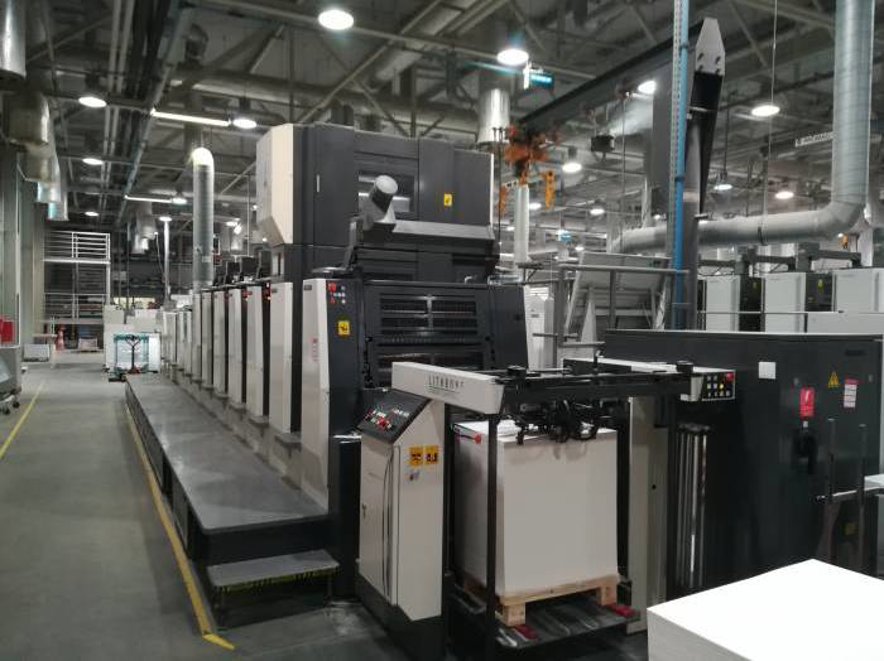

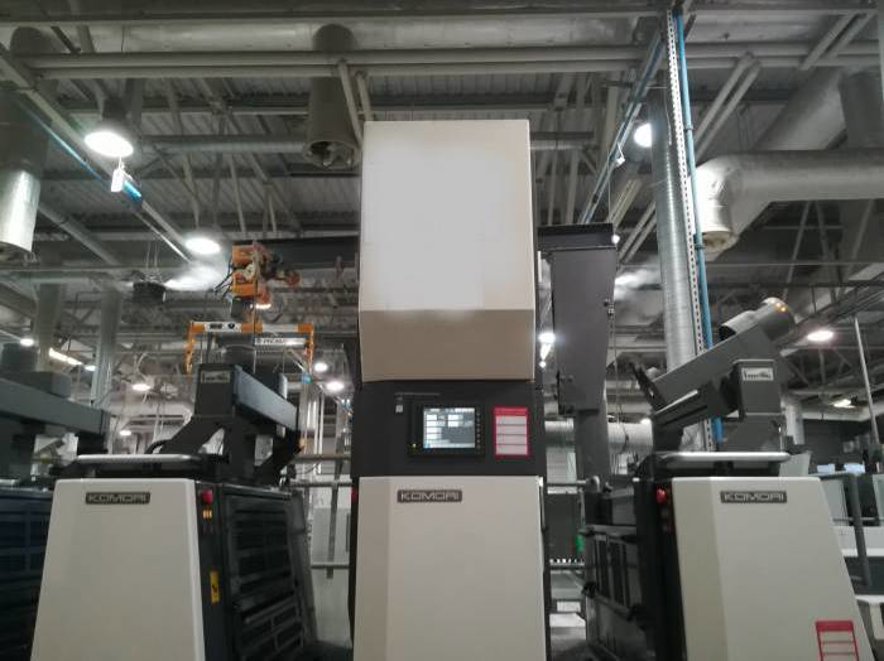

The Komori LSX-629 LED H-UV is a high-performance sheet-fed offset printing press designed for commercial and packaging printing applications. This machine is part of the Lithrone series, known for its exceptional print quality, reliability, and versatility. The LSX-629 LED H-UV is equipped with advanced features such as LED-UV curing, high-speed printing, and automated plate changing, making it an ideal choice for printers seeking to increase productivity and reduce turnaround times. Its key benefits include excellent color consistency, reduced energy consumption, and enhanced environmental sustainability.

Key Technical Aspects:

Dimensions and Specifications : The Komori LSX-629 LED H-UV has a maximum sheet size of 23.62 x 29.53 inches (600 x 750 mm) and a minimum sheet size of 10.24 x 14.17 inches (260 x 360 mm). The machine weighs approximately 13,228 lbs (6,000 kg) and has a maximum printing speed of 18,000 sheets per hour.

Paper Handling : The LSX-629 LED H-UV features a high-capacity feeder with a maximum pile height of 27.56 inches (700 mm) and a sheet capacity of 5,000 sheets. The delivery system has a maximum pile height of 31.5 inches (800 mm) and a sheet capacity of 5,000 sheets. The machine is equipped with advanced paper handling features, including an automatic sheet size changeover system and a sheet detection system.

Printing Unit : The printing unit of the LSX-629 LED H-UV features a maximum printing speed of 18,000 sheets per hour and a resolution of 2,400 dpi. The machine uses a combination of LED-UV curing and H-UV technology to achieve high-quality prints with excellent color consistency and fast drying times.

Ink System : The LSX-629 LED H-UV uses a high-performance ink system with a maximum ink capacity of 22 lbs (10 kg) per color. The machine features an automatic ink supply system and an ink saving function to reduce ink consumption and minimize waste.

Plate Cylinder : The plate cylinder of the LSX-629 LED H-UV has a diameter of 4.33 inches (110 mm) and a circumference of 13.78 inches (350 mm). The machine features an automatic plate changing system, which allows for fast and efficient plate changes, reducing downtime and increasing productivity.
