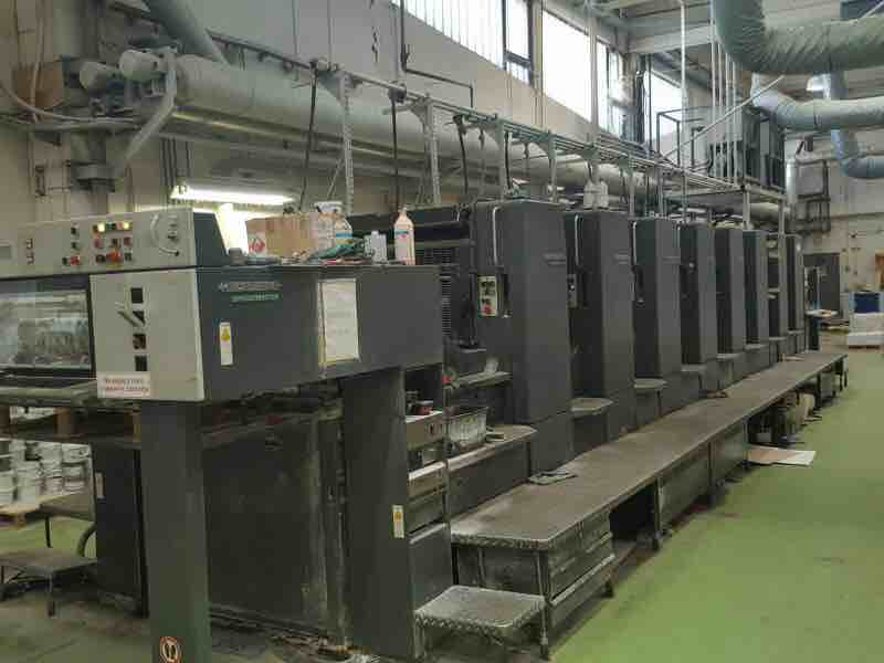

Heidelberg - Speedmaster SM 102-8 P

Key Technical Aspects:

Dimensions and Specifications :The Heidelberg Speedmaster SM 102-8 P has a length of 23.6 meters, a width of 6.3 meters, and a height of 2.1 meters. The machine weighs approximately 140 tons and has a maximum sheet size of 720 x 1020 mm. The press is capable of producing up to 18,000 sheets per hour.

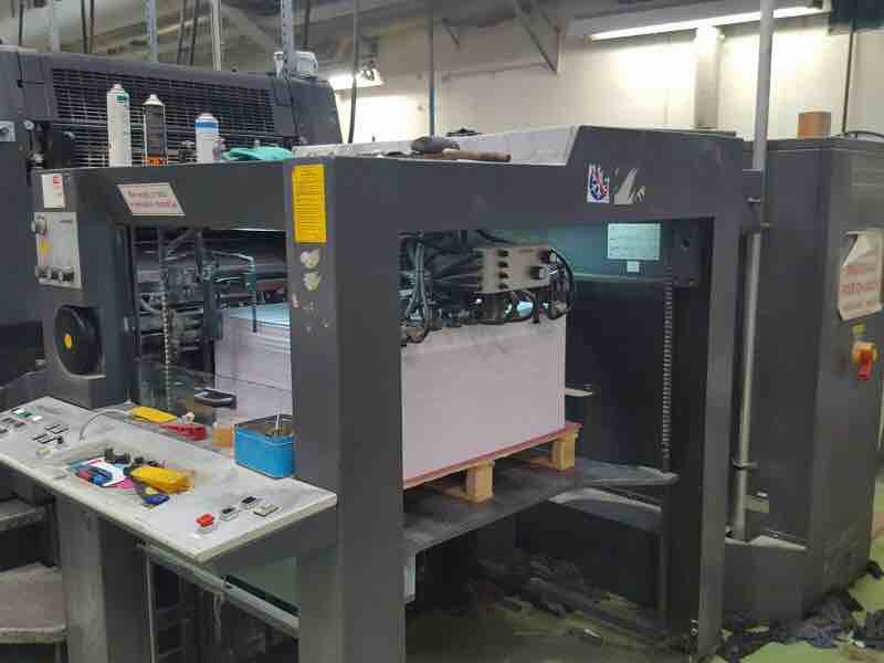

Paper Handling :The Speedmaster SM 102-8 P features a highly advanced paper handling system, including a feeder with automatic pile change, a sheet transport system with air-jet technology, and a delivery system with a high-capacity pile stacker. The machine can handle paper weights ranging from 0.03 to 0.6 mm and has a maximum sheet thickness of 0.8 mm.

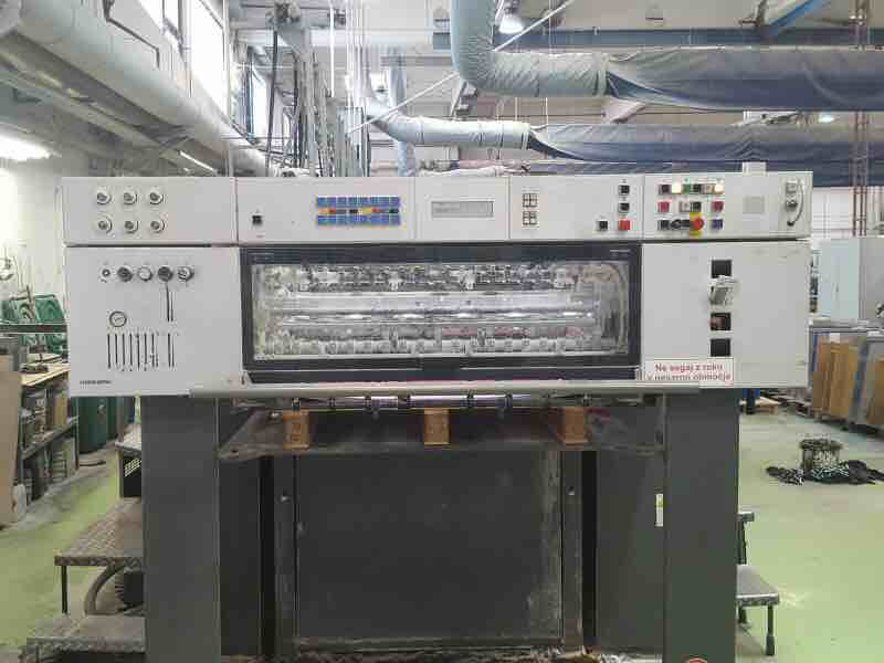

Printing Unit :The printing unit of the Speedmaster SM 102-8 P features eight printing units, each equipped with a diameter of 1,020 mm and a repeat length of 720 mm. The press has a maximum print speed of 18,000 sheets per hour and a resolution of 400 lpi. The printing unit utilizes Heidelberg's advanced printing technology, including the Alcolor dampening system and the AutoPlate Pro plate changing system.

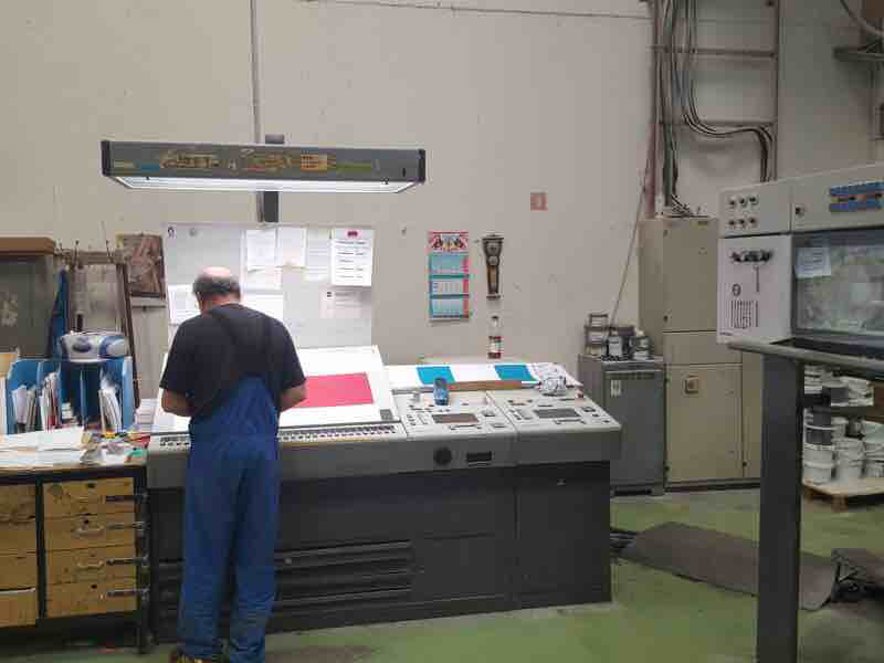

Ink System :The ink system of the Speedmaster SM 102-8 P features a closed-loop ink control system, which ensures consistent ink density and color accuracy throughout the printing process. The machine uses a high-pigment, oil-based ink and has an ink capacity of 20 kg per color. The ink system also features an automatic ink temperature control system, which maintains a consistent ink temperature between 20°C and 30°C.

Plate Cylinder :The plate cylinder of the Speedmaster SM 102-8 P has a diameter of 1,020 mm and a repeat length of 720 mm. The plate cylinder is designed for use with Heidelberg's Saphira plate technology, which provides high-quality, long-life plates with excellent durability and resistance to wear. The plate cylinder is also equipped with an automatic plate changing system, which allows for quick and easy plate changes during production.
