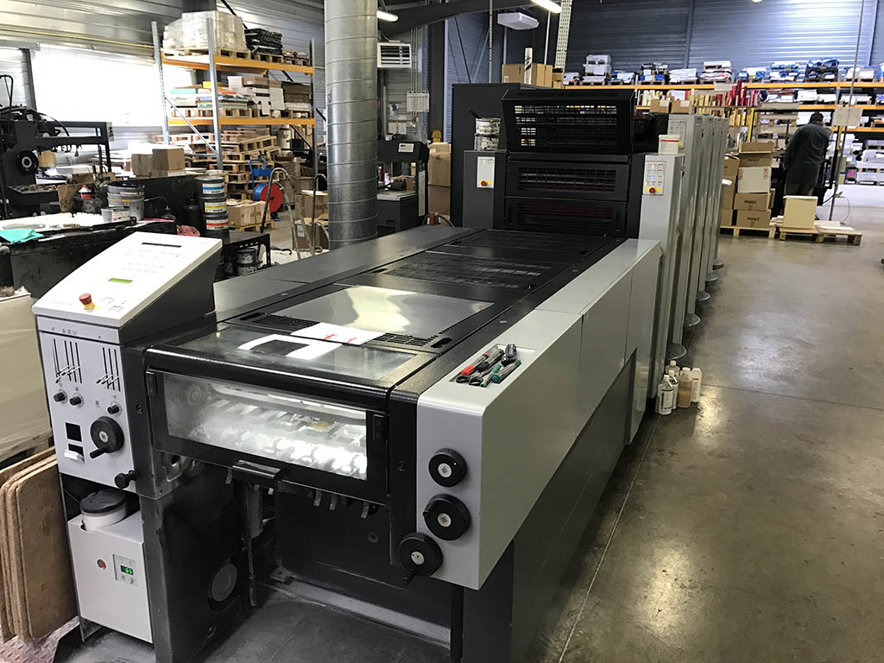

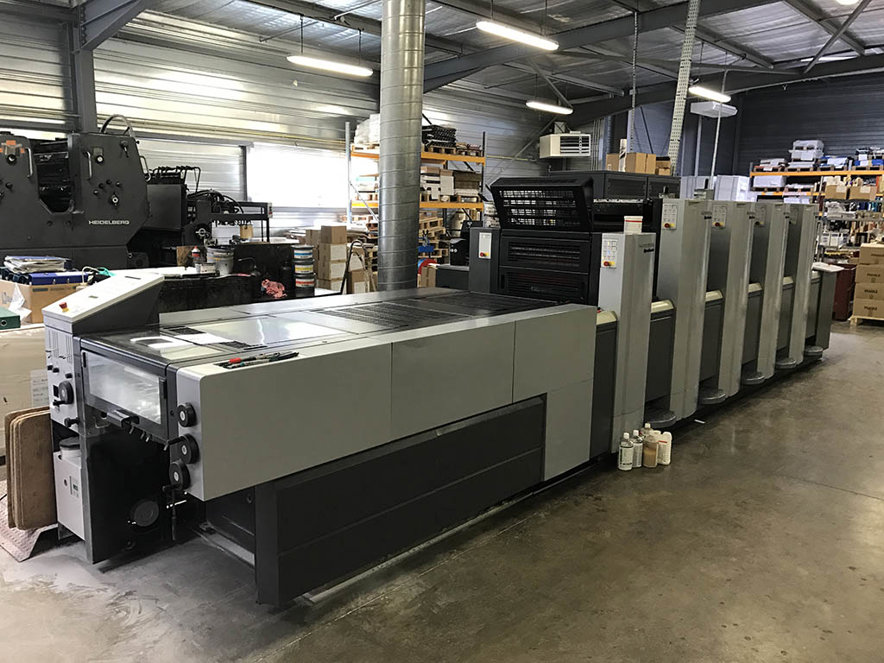

Heidelberg - SX 52 4+LX

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg SX 52 4+LX has a machine length of 6,350 mm, a machine width of 2,350 mm, and a machine height of 1,900 mm. It weighs approximately 12,000 kg and has a maximum power consumption of 55 kW. The press has a production speed of up to 15,000 sheets per hour.

Paper Handling : The SX 52 4+LX features a high-performance paper handling system, including a feeder with a capacity of up to 5,000 sheets, an infeed system with a sheet alignment system, and a delivery system with a pile height of up to 1,500 mm. The press is equipped with a non-stop pile changing system, allowing for continuous production without interruptions.

Printing Unit : The printing unit of the SX 52 4+LX is equipped with four printing units, each with a maximum printing speed of 15,000 sheets per hour. The press uses a conventional offset printing process with a maximum printing format of 520 x 740 mm. The printing unit features a high-precision plate cylinder with a diameter of 520 mm and a circumference of 1,650 mm.

Ink System : The SX 52 4+LX uses a high-performance ink system with a maximum ink flow rate of 1,200 ml/min. The press is equipped with a four-roller inking system, featuring a ductor roller, an anilox roller, a form roller, and an impression cylinder. The ink system is designed for use with conventional offset inks.

Plate Cylinder : The plate cylinder of the SX 52 4+LX has a diameter of 520 mm and a circumference of 1,650 mm. The plate cylinder is designed for use with conventional offset printing plates and features a high-precision plate clamping system, ensuring accurate plate registration and consistent print quality.
