Heidelberg - GTO Z 52

Key Technical Aspects:

Dimensions and Specifications : The Heidelberg GTO Z 52 has a length of 5,350 mm, a width of 1,450 mm, and a height of 1,800 mm. It weighs approximately 4,500 kg and has a maximum sheet size of 520 x 720 mm. The machine has a printing speed of up to 15,000 sheets per hour and is capable of handling paper weights ranging from 80 to 400 gsm.

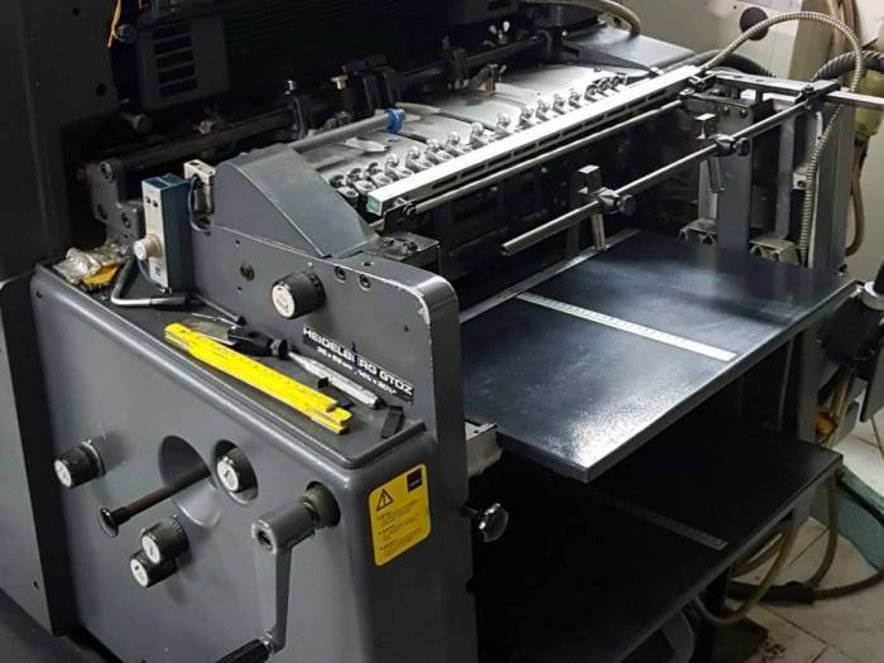

Paper Handling : The GTO Z 52 features a high-capacity feeder with a maximum pile height of 1,200 mm, allowing for efficient and uninterrupted printing. The machine is equipped with a suction tape feeder, a sheet alignment system, and a precision register control system, ensuring accurate and precise paper handling. The delivery system consists of a high-pile delivery with a maximum pile height of 1,200 mm and a sheet ejection system.

Printing Unit : The printing unit of the GTO Z 52 is equipped with a high-precision printing cylinder with a diameter of 520 mm and a length of 720 mm. The machine features a maximum printing speed of 15,000 sheets per hour and a printing resolution of 300 lpi. The printing unit uses a conventional offset printing technology with a quick-change inking system and a precision impression cylinder.

Ink System : The GTO Z 52 uses a conventional offset ink system with a quick-change inking system, allowing for fast and efficient ink changes. The machine has a maximum ink capacity of 20 kg and features an ink temperature control system, ensuring consistent and high-quality printing results.

Plate Cylinder : The plate cylinder of the GTO Z 52 has a diameter of 520 mm and a length of 720 mm. The machine features a quick-change plate system, allowing for fast and efficient plate changes. The plate cylinder is designed for precise and accurate plate registration, ensuring high-quality printing results.
